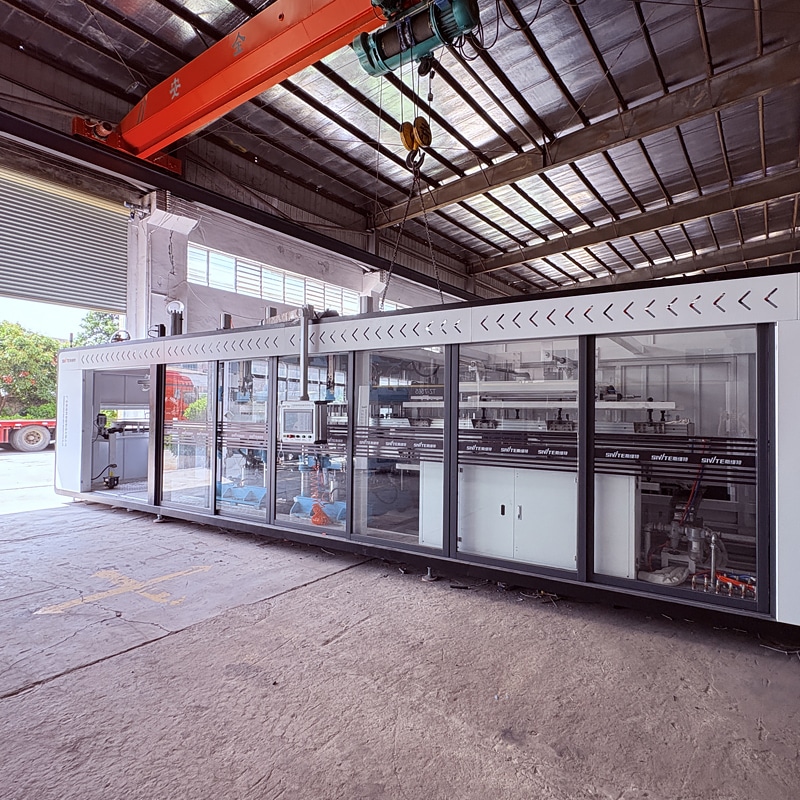

Supercharge your factory’s efficiency with the Multi-Station Thermoforming Machine SWT-8575. Engineered with an oversized forming area, it delivers an impressive 1.2 to 1.5 times the output of standard smaller machines within the same timeframe. The system utilizes cutting-edge positive and negative pressure forming to achieve unmatched precision and exceptional product quality. With its highly automated design, this high-performance machine drastically lowers labor requirements and minimizes human error. Invest in the SWT-8575 to optimize your production workflow, slash operational costs, and stay ahead in the competitive plastic packaging industry.
Video of the entire operation process
Scope Of Application
Suitable for forming thermoplastic materials (such as PS, HIPS, PET, PP, KPS, GPET, PLA, etc.) with thicknesses ranging from 0.15 mm to 2.0 mm. It is capable of producing complex shapes and high draw-ratio products—including round, square, and irregular forms, as well as items requiring up-and-down forming and flanging processes. Applications include food industry containers (meal boxes, sushi trays, fruit boxes, egg trays); electronics industry components (electronic trays, blister packs); medical industry products (oral liquid trays, blister packaging); and packaging solutions for sectors such as agriculture and hardware.
Machine Technical Parameters

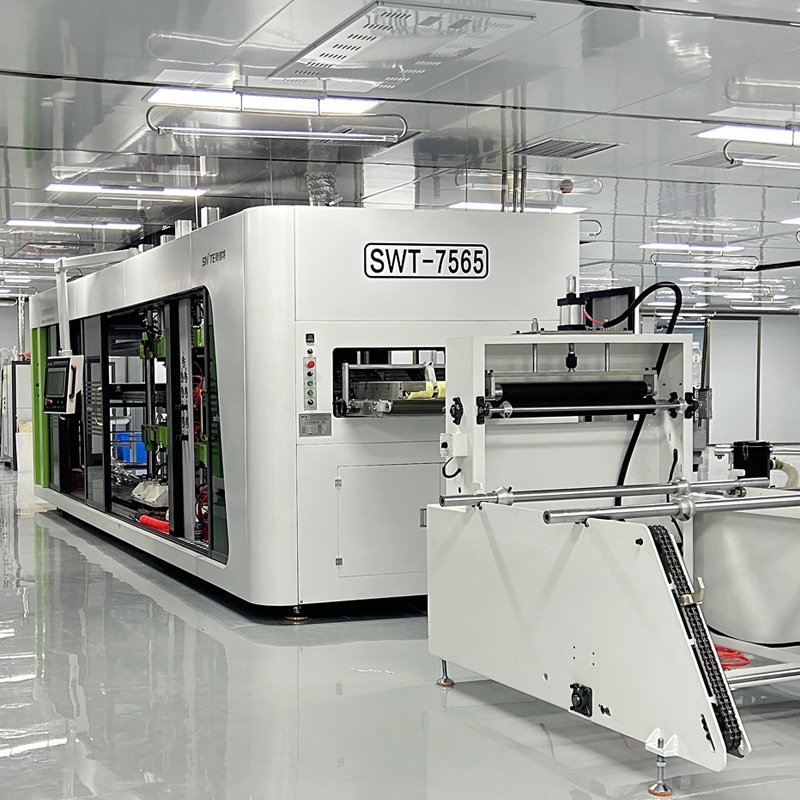

| Model | SWT-7585 | SWT-7565 | SWT-6245 |
|---|---|---|---|
| Mould size(max.) | 750*850mm | 750*650(mm) | 620*450(mm) |
| Forming method | Positive And Negative Pressure Forming | ||
| Forming depth(max.) | 140mm | 140mm | 140mm |
| Sheet thickness | 0.16~2.0mm | 0.16~2.0mm | 0.16~2.0mm |
| Forming speed(max.) | 40~50times/min | 40~50times/min | 30~50times/min |
| Air pressure | 0.6~0.8mpa | 0.6~0.8mpa | 0.6~0.8mpa |
| Sheet width(max.) | 410~790mm | 380~760mm | 380~630mm |
| Adaptive material | PET,PP,PS,HIPS,PVC,PLA..... | ||
| Power supply | AC 380V,50Hz,Three-phase,Four-wire (Can be customized according to the power supply voltage requirements of different countries) | ||
| Heatingpower | 117kw | 94.5kw | 91kw |
| Rated power | 153kw | 120kw | 118kw |
| Procedure | Forming-punching hole-cutting-stacking | ||
| Dimension | L*W*H (10.5m*2.15m*2.88m) | L*W*H (9.5m*2.15m*2.8m) | L*W*H (8.0m*2.0m*2.5m) |
| Weight | Around 14T | Around 11T | Around 10T |
High-quality components
