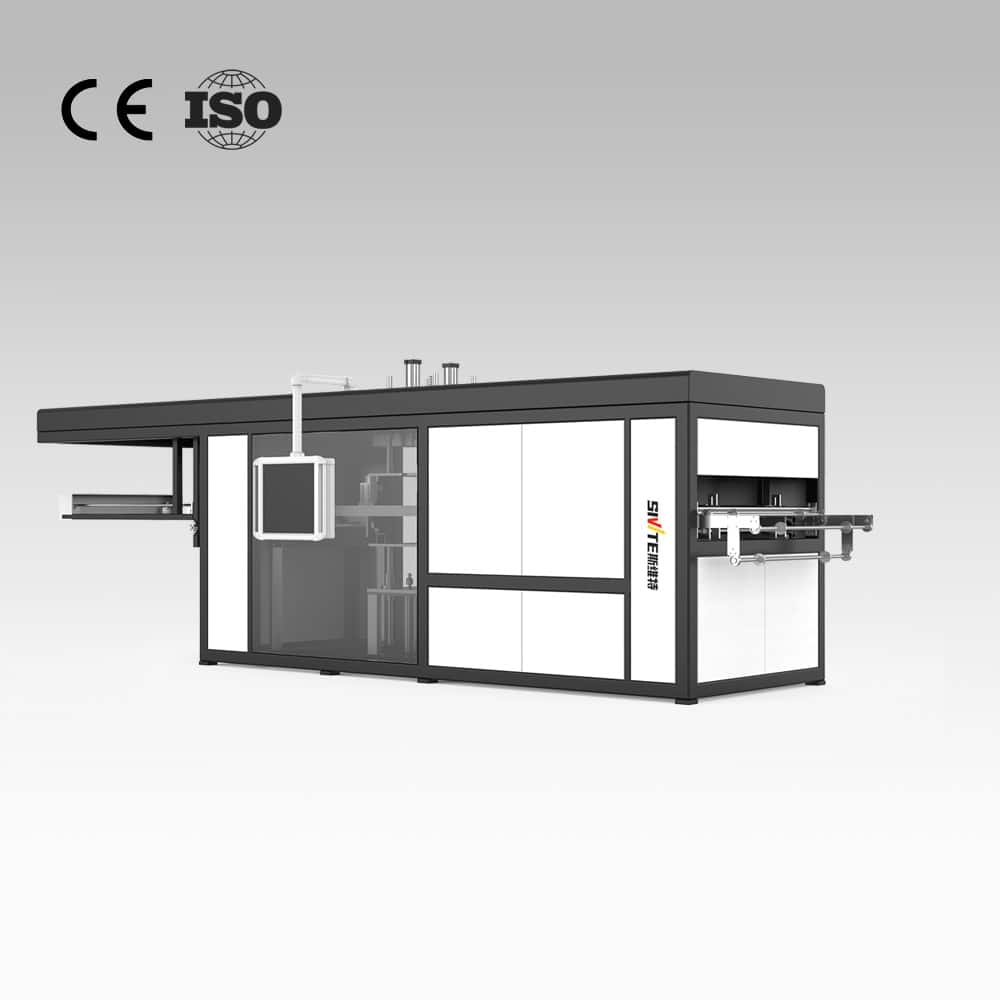

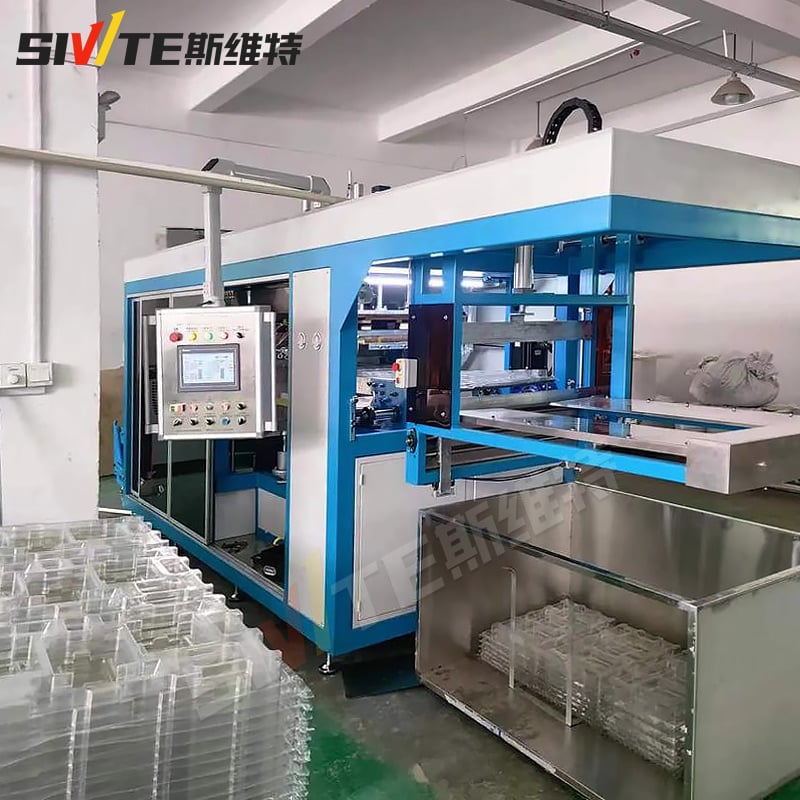

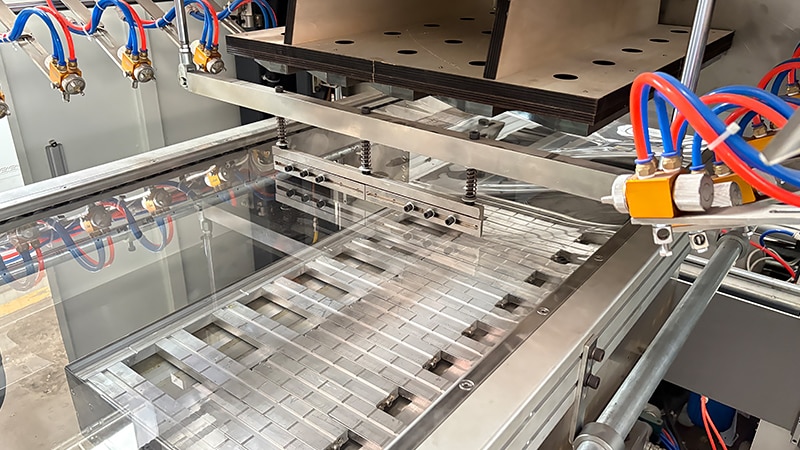

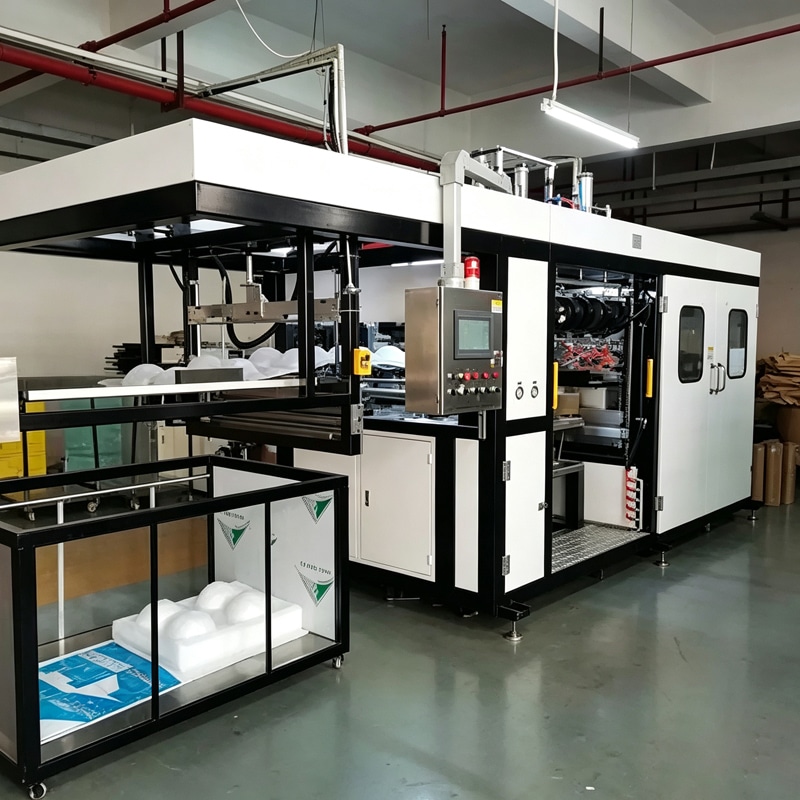

High-speed servo Single Station Thermoforming Machine SWT-1220 is a classic, time-tested design named for its single forming station. It reliably produces mooncake trays, blister packs, electronic trays, and more using copper or gypsum molds. While not fully automatic like multi-station units—it requires a separate trimming press for part separation—its generous 1220mm forming area handles large-sized products with ease. This makes it an excellent choice for oversized items where wide forming space is critical. Simple to operate and maintain, this cost-effective machine remains a practical solution for manufacturers prioritizing large-format production over high-speed automation.
Video of the entire operation process
Scope Of Application

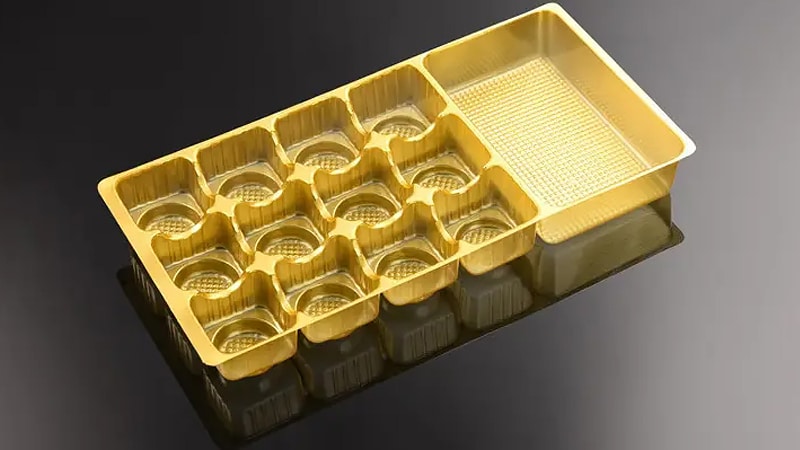

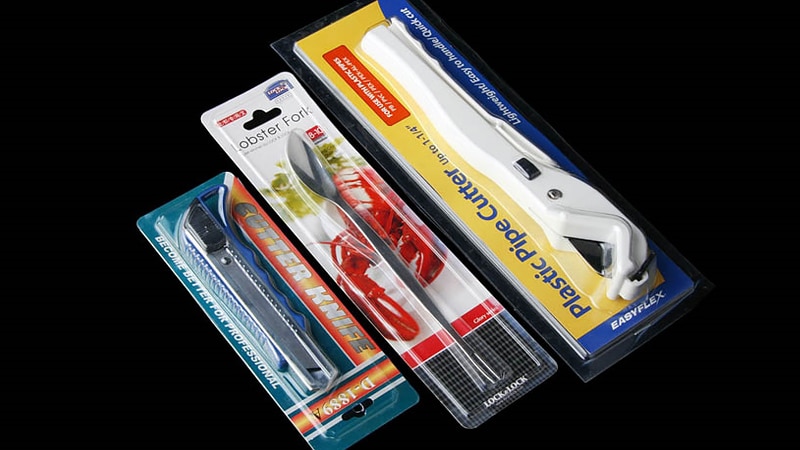

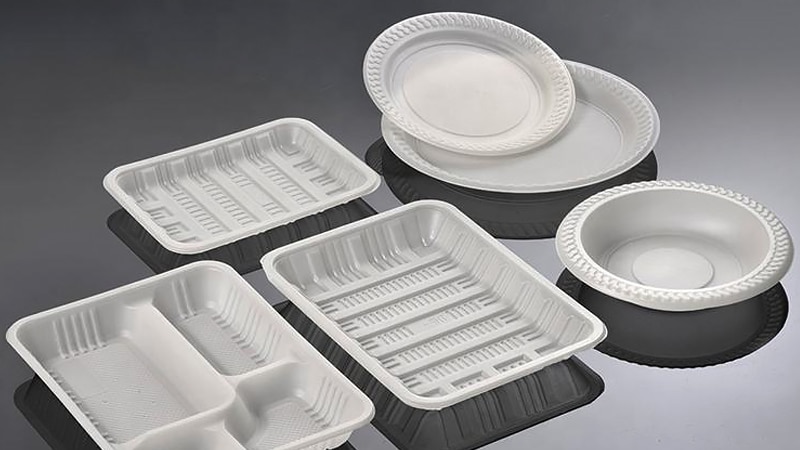

Suitable for forming thermoplastic materials (such as PS, HIPS, PET, PP, KPS, GPET, PLA, etc.) with thicknesses ranging from 0.15 mm to 2.0 mm. It is capable of producing complex shapes and high draw-ratio products—including round, square, and irregular forms, as well as items requiring up-and-down forming and flanging processes. Applications include food industry containers (meal boxes, sushi trays, fruit boxes, egg trays); electronics industry components (electronic trays, blister packs); medical industry products (oral liquid trays, blister packaging); and packaging solutions for sectors such as agriculture and hardware.
Machine Technical Parameters
| Forming method | Negative pressure forming | Mould size(max.) | 760*1220mm |
|---|---|---|---|
| Forming depth(max.) | 180mm | Sheet thickness | 0.16~20mm |
| Forming speed(max.) | 6~15time/min | Air pressure | 0.6~0.8Mpa |
| Sheet width(max.) | 490~750mm | Adaptive material | PET,PP,PS,HIPS,PVC,PLA..... |
| Power supply | AC 380V,50Hz Three-phase,Four-wire | Heating power | 39KW |
| Rated power | 55KW | Procedure | Forming（Single station） |
| Dimension | 10.5m*2.15m*2.8m(L*W*H) | Weight | 4.8T |
High-quality components
