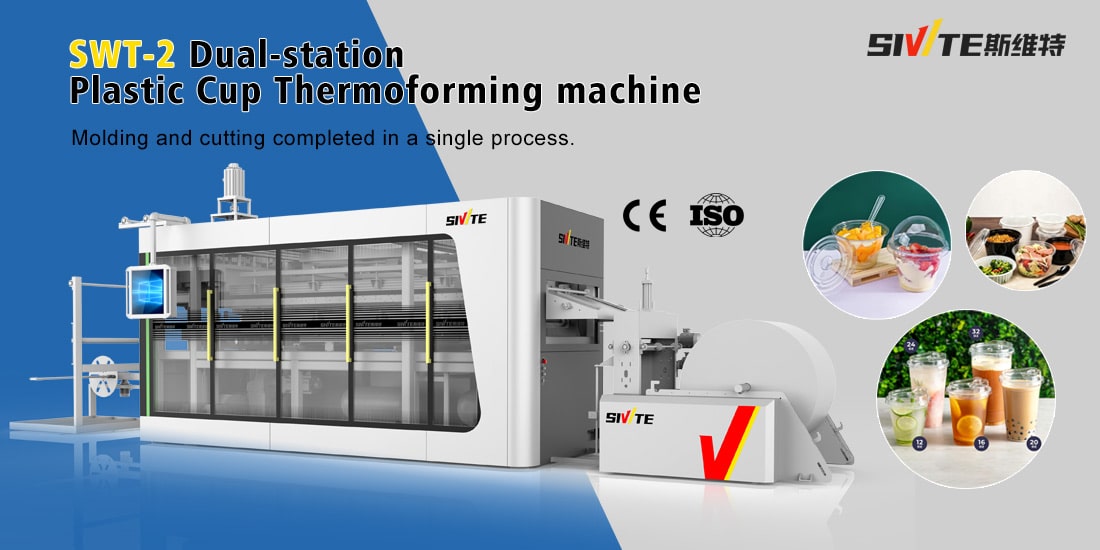

SWT-2 Dual-station Plastic Cup Thermoforming Machine
SIVITE SWT-2 Plastic Cup Thermoforming Machine: one machine for cups, bowls, and containers. Molding and cutting completed in a single process.Maximize equipment utilization and product variety. Low initial investment, small footprint, and lower energy consumption.
- Delivery Time: 1–2 months after confirmation of the deposit.
- Price terms: FOB, EXW, CFR, CIF, etc.
- Payment methods: T/T (wire transfer), Visa, PayPal, Alipay, etc.
What is a Plastic Cup Thermoforming Machine?
SIVITE SWT-2 Dual-station Plastic Cup Thermoforming Machine, also known as a plastic cup making machine, integrates forming and cutting in one complete cycle. This model adopts a full servo drive system for precise, stable, and high-speed operation. Designed for PP, PET, PS, and PLA materials, it delivers excellent product consistency with low energy consumption and minimal waste—an ideal solution for disposable cup and container production.
What products can be manufactured using it?
1.Disposable Beverage Cups: Used for various drinks such as water, juice, coffee, tea, etc.
2.Food Container Cups: Such as ice cream cups, yogurt cups, pudding cups, etc.
3.Food Packaging Cups: Used for soups, salads, nuts, and other food items.
4.Coffee Cups: Used in coffee shops, tea shops, etc., usually with a lid.
5.Pharmaceutical Containers: Used for packaging certain liquid medicines.
6.Medical Sample Cups: Small containers used for sample collection or laboratory use.
7.Bubble Tea and Juice Cups: Common products for bubble tea shops, juice bars, etc.
8.Food packaging: takeout boxes, bowls, ice cream cups
Working Principle of Plastic Cup Thermoforming Machines：
Thermoplastic sheets, including PET, PP, and PS, are first softened in the heating zone of the machine, then fed into the forming station over the cup mold. During this stage, the heated sheet is stretched while both positive and negative air pressure are applied to ensure precise replication of the mold cavity shape. Any surplus material is cut off directly within the mold, yielding a finished cup. After forming, the cups are ejected by compressed air and then transferred to a robotic arm for sorting and collection.
Functional Characteristics of Plastic Cup Thermoforming Machines
This machine is made up of eight main modules, each fulfilling a distinct role while working in coordinated harmony with the rest of the system. Together, they ensure the equipment meets the demands of precision manufacturing and high-speed output required for plastic cup production.

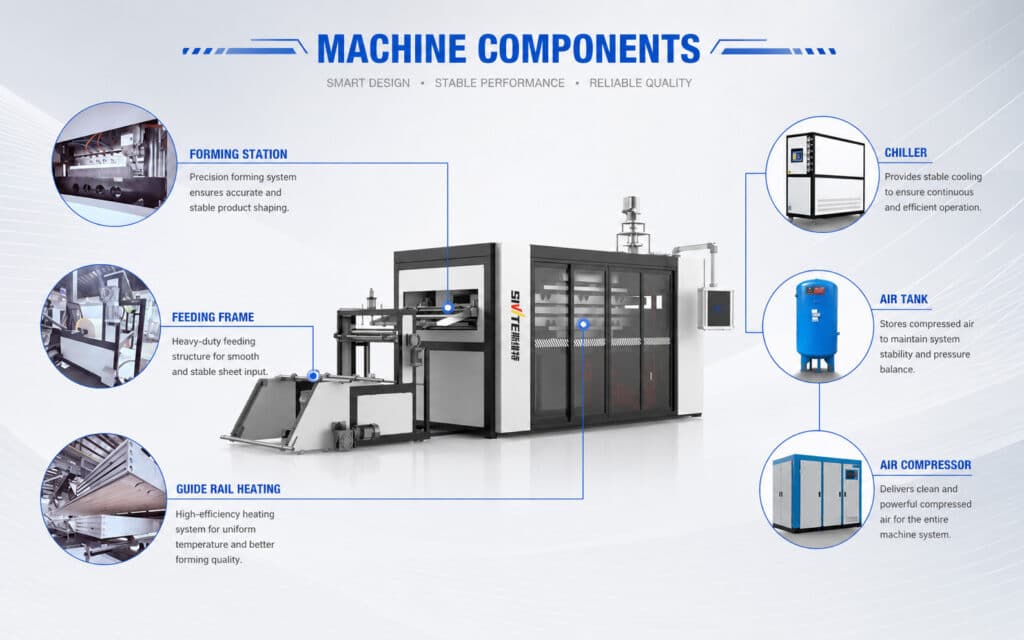

What are the core components?
The machine comprises eight core components, each with a distinct role yet working in coordinated harmony. Understanding these parts helps customers clearly identify key components, wear parts, and items requiring routine maintenance. This knowledge enables optimized daily inspection and service planning, ensuring long-term operational stability and minimizing unplanned downtime.
Comparison of Thermoforming Machine Solutions
When selecting a thermoforming machine, one can choose from single-station, dual-station, three-station, or four-station models, each suited to the optimal forming of specific thermoformed products; understanding the differences between these machine configurations is essential for selecting the appropriate production line setup.
1.Single-station Thermoforming Machine
Entry-level basic model with the simplest structure and lowest investment cost. Forming and cutting are completed in separate steps, resulting in moderate production efficiency and limited precision and stability. Suitable for simple packaging boxes, trays, and other products with low requirements. Typical products: general packaging boxes, blister trays, electronic trays (basic grade).
Investment cost: ★★☆☆☆
2.Dual-station Thermoforming Machine
Professional cup thermoforming machine with two stations operating alternately for high output efficiency. Full servo drive ensures precision and stability. Ideal for mass production of various cup types. Typical products: milk tea cups, coffee cups, ice cream cups, disposable water cups, takeaway food containers, and cups with lids.
Investment cost: ★★★☆☆
3.Three-station Thermoforming Machine
Three-in-one integrated machine combining heating, forming, and cutting in a fully automatic continuous production line—labor-saving and high efficiency. Suitable for complex shapes and deep-drawn products. Typical products: meal boxes, fruit containers, electronic trays, egg trays, sandwich containers, and blister clamshell packaging.
Investment cost: ★★★★☆
4.Four-station Thermoforming Machine
Four-in-one integrated machine with an additional punching function beyond forming and cutting, enabling fully automatic high-speed production of perforated products. Ideal for items requiring punching, notch cutting, or secondary processing. Typical products: blueberry punnets, strawberry punnets, flower pots, hanging hole trays, and other perforated packaging items.
Investment cost: ★★★★★
Cup Thermoforming Machine Parameters
| Model | SWT-750 | SWT-850 |
|---|---|---|
| Max. forming area | 750*500mm | 850*550mm |
| Max. forming depth | ≤220mm | |
| Sheet thickness | 0.2~0.3mm | |
| Max. forming speed | 28 cycles/min | |
| Suitable material | PET,PP,PS,PVC,HIPS... | |
| Main motor power | 165kw | 182kw |
| Weight | 8.5T | 9T |
| Dimension | 4300*2300*2500mm(L*W*H) | 5200*2300*2500mm(L*W*H) |
| Model | SWT-6245 | SWT-7565 | SWT-8575 |
|---|---|---|---|
| Mould size(max.) | 620*450mm | 750*650mm | 850*750mm |
| Forming depth(max.) | 140mm | 120mm | 140mm |
| Sheet thickness | 0.15~2.0mm | ||
| Forming speed(max.) | 20~50 cycles/min | ||
| Adaptive material | PET,PP,PS,PLA,PVC,HIPS... | ||
| Rated power | 118kw | 120kw | 153kw |
| Weight | 10T | 11T | 14T |
| Dimension | 8000*2000*2500mm(L*W*H) | 9500*2150*2800mm(L*W*H) | 10500*2150*28800mm(L*W*H) |
Complete production solution
To transform plastic raw materials into an exquisite plastic cup, every step outlined below is crucial; if you intend to launch this project, you must understand the complete production process—from raw material pellets to the finished cup.
