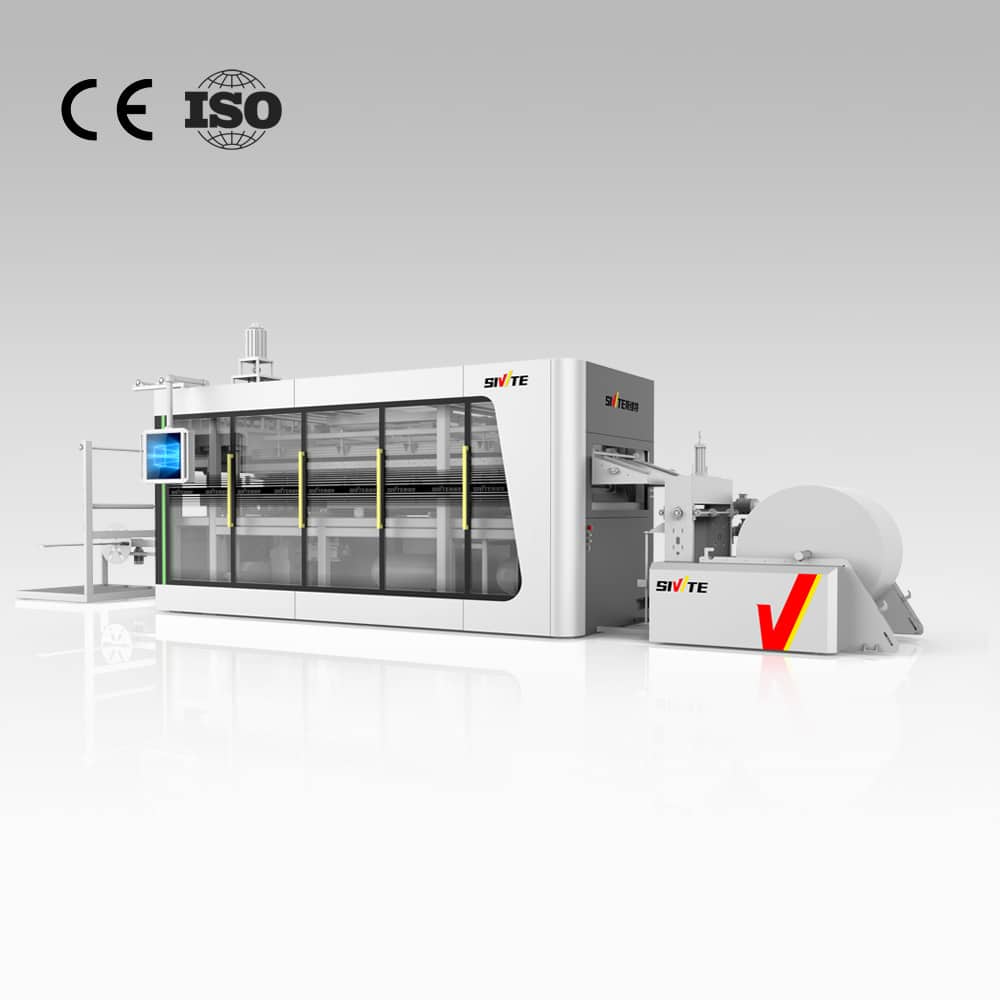

SWT-750 Disposable Plastic Cup Making Machine
The Sivite disposable plastic cup making machine is designed to produce items such as coffee cups, ice cream cups, bowls, and plates; it features a compact footprint and high production output.
- Delivery Time: 1–2 months after confirmation of the deposit.
- Price terms: FOB, EXW, CFR, CIF, etc.
- Payment methods: T/T (wire transfer), Visa, PayPal, Alipay, etc.
What is a plastic cup-making machine?
The SWT-750 plastic cup making machine is designed specifically for the production of disposable plastic cups. Everyday items such as disposable coffee cups, milk tea cups, yogurt cups, and ice cream cups are manufactured using this equipment.

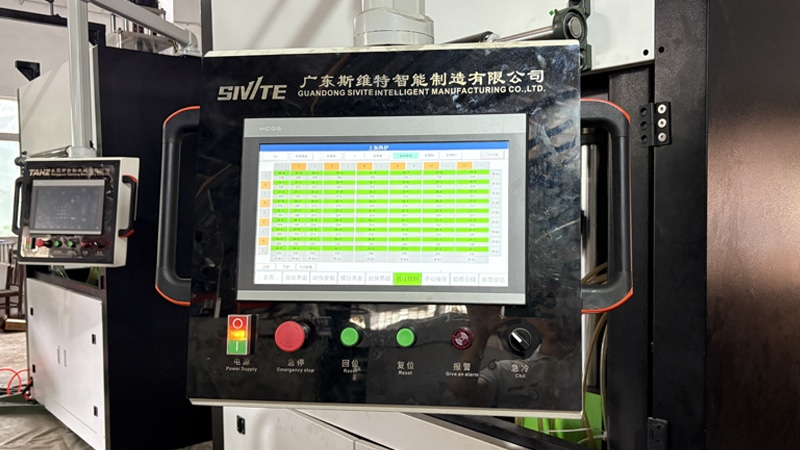

Utilizing a thermoforming process, the machine heats plastic sheets (such as PET, PP, and PS) and shapes and cuts them within the mold to produce high-quality cups, bowls, plates, and dishes. Controlled by a microcomputer and featuring in-mold forming and cutting technology, the machine integrates the forming and trimming processes into a single station. It offers a compact footprint, low energy consumption, and high production capacity; when paired with an intelligent downstream system, it enables a fully automated, one-stop production process—from logo printing to cup sorting and packaging.
What products can be manufactured using it?
1.Disposable Beverage Cups: Used for various drinks such as water, juice, coffee, tea, etc.
2.Food Container Cups: Such as ice cream cups, yogurt cups, pudding cups, etc.
3.Food Packaging Cups: Used for soups, salads, nuts, and other food items.
4.Coffee Cups: Used in coffee shops, tea shops, etc., usually with a lid.
5.Pharmaceutical Containers: Used for packaging certain liquid medicines.
6.Medical Sample Cups: Small containers used for sample collection or laboratory use.
7.Bubble Tea and Juice Cups: Common products for bubble tea shops, juice bars, etc.
Working Principle of Plastic Cup Making Machines：

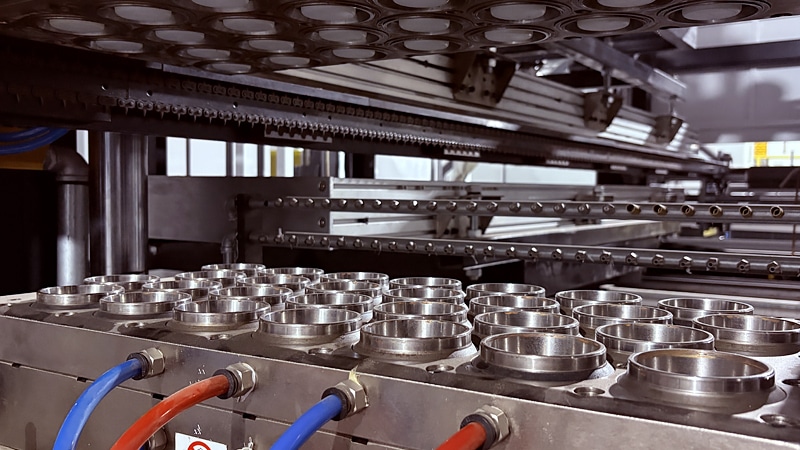

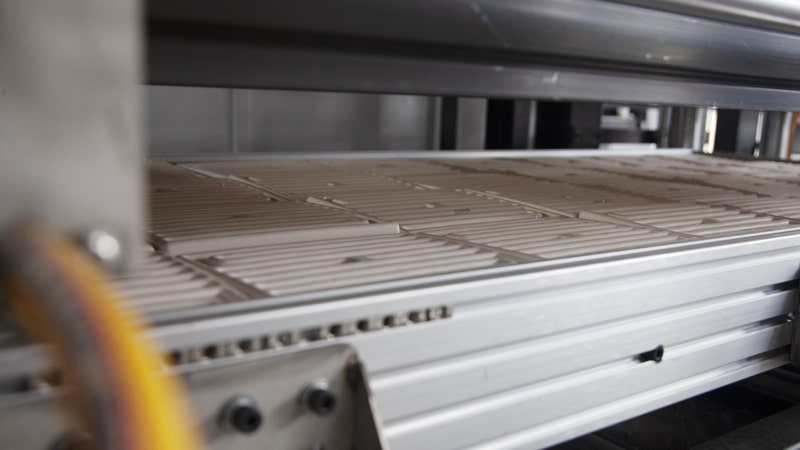

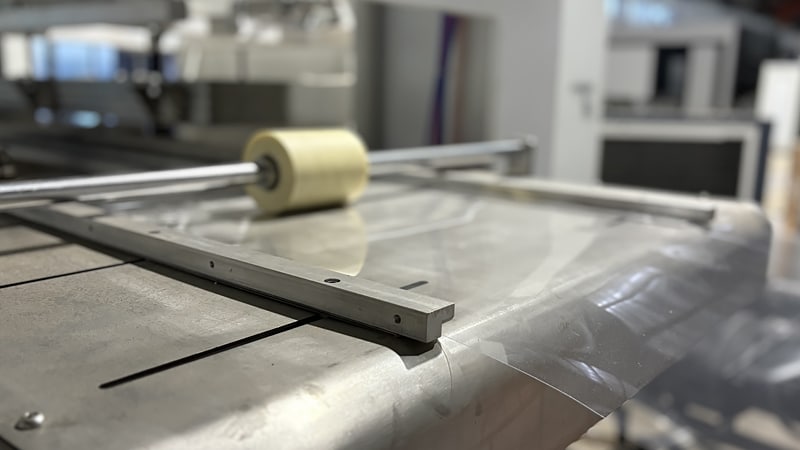

Thermoplastic sheets—such as PET, PP, or PS—are softened in the machine’s heating section and then positioned over the cup-forming mold. During the forming process, the sheet is stretched, and positive and negative pressure are applied to ensure the material conforms perfectly to the mold cavity; excess material is trimmed away within the mold to produce a finished cup. Once formed, the cups are ejected using air pressure and subsequently handled for sorting and collection by a robotic arm.
Functional Characteristics of Plastic Cup Making Machines

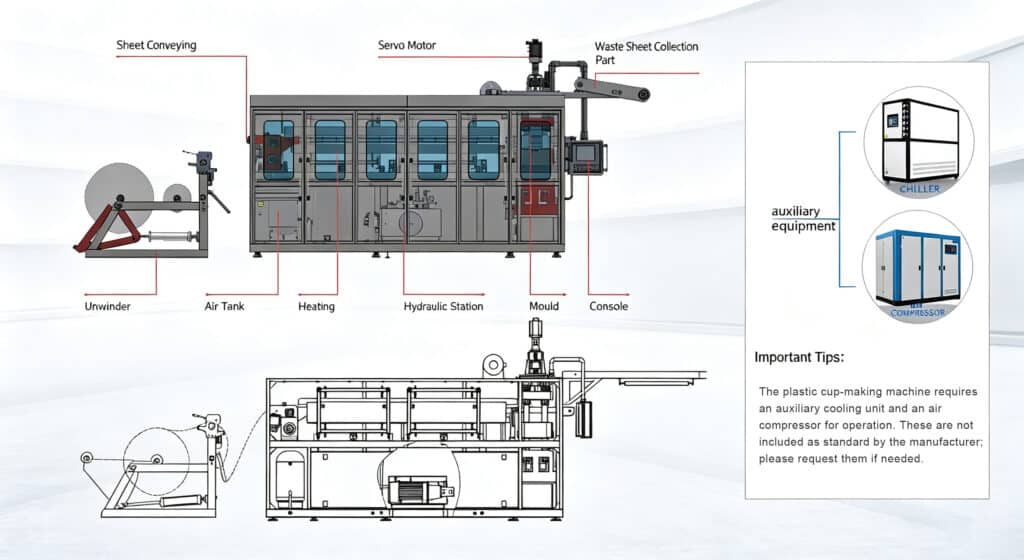

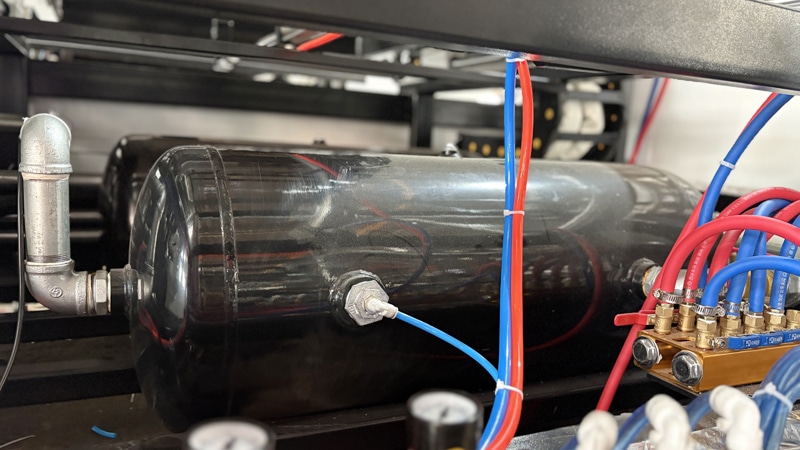

The plastic cup manufacturing machine consists of nine key components; each performs its specific function while seamlessly connecting and integrating with the others to meet the requirements for precision and high-efficiency plastic cup production.
What are the core components?
Every component of the plastic cup-making machine plays an irreplaceable role; only through the coordinated operation of all components can continuous production be achieved while ensuring consistent product quality.
Comparison of Plastic Cup Production Solutions
There are primarily two configuration options for plastic cup production, each capable of meeting specific capacity and material requirements; these generally involve either hydraulic or servo-driven cup-making machines. Understanding the differences between them is crucial for selecting the right production line configuration.

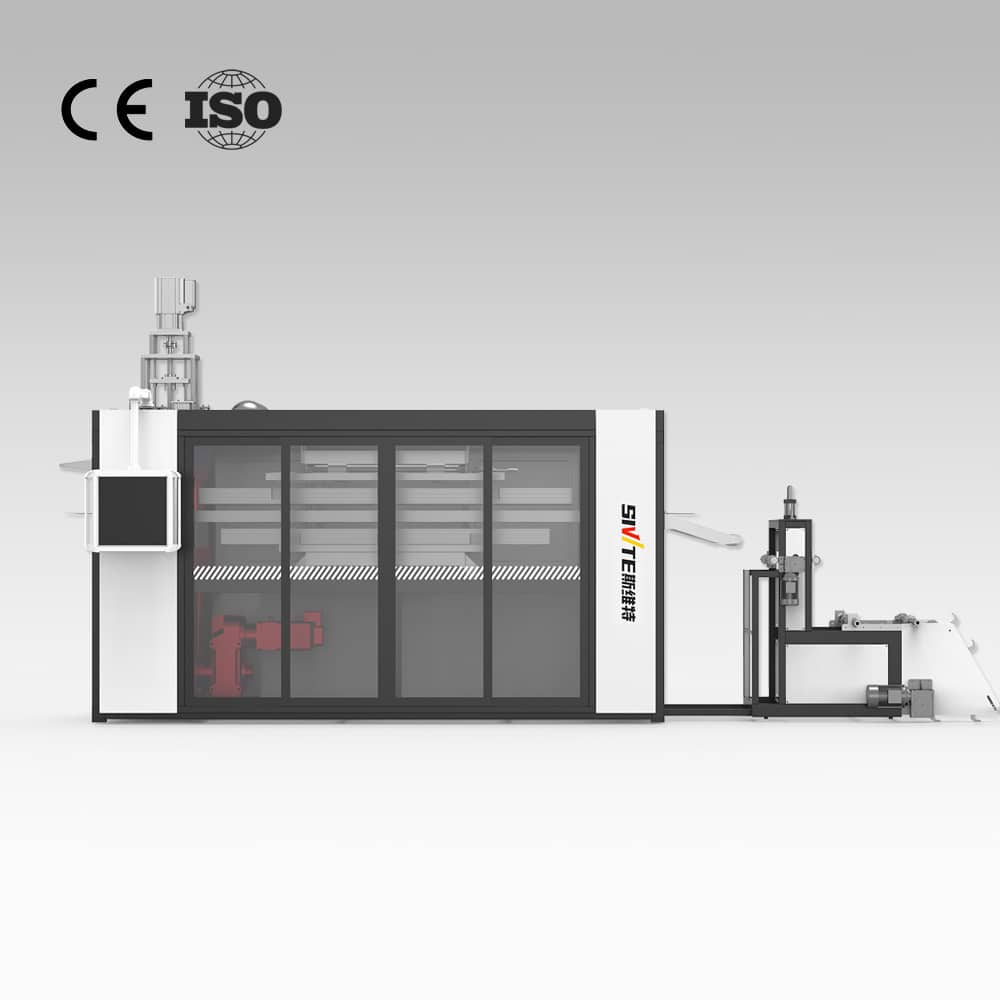

1.Hydraulic Plastic Cup Making Machine
The structure is mature and offers significant cost advantages, making it suitable for the mass production of standard cup types. However, there are two major drawbacks: low control precision and poor dimensional consistency, limiting its suitability to cups with low precision requirements; and a hydraulic system prone to leakage and contamination—resulting in poor cleanliness and requiring frequent maintenance—which directly impacts operational stability.

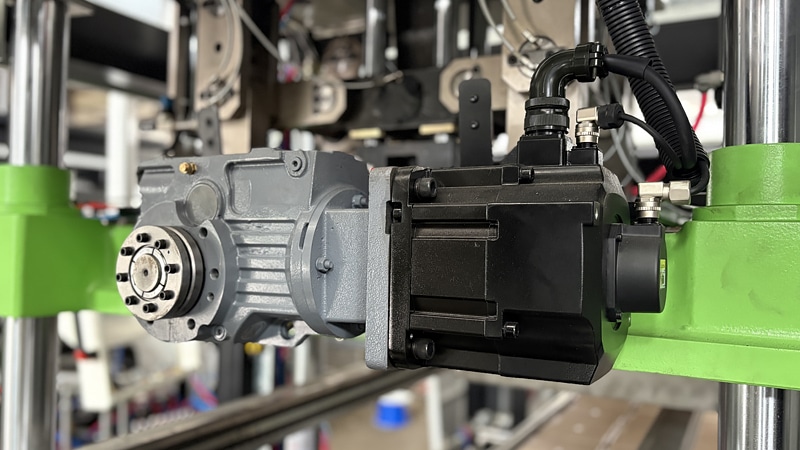

2.Servo Plastic Cup Making Machine
Driven by a full servo motor system, it offers precise motion and rapid response, enabling multi-stage speed and closed-loop pressure control. Energy consumption is reduced by 30%–50% compared to hydraulic models; there is no risk of oil leakage, and product thickness uniformity is significantly improved. It is suitable for high-speed thin-wall forming, complex cup-shaped parts, and applications requiring frequent production changeovers.
Plastic Cup Machine Parameters
| Model | SWT-750 | SWT-850 |
|---|---|---|
| Mould size | 750*420mm | 850*550mm |
| Forming Depth(max.) | ≤220mm | ≤220mm |
| Sheet Thickness | 0.2~3.0mm | 0.2~3.0mm |
| Forming Speed(max.) | 28times/min | 28times/min |
| Air pressure | 0.6~0.8Mpa | 0.6~0.8Mpa |
| Sheet width(max.) | 550~790mm | 650~890mm |
| Suitable Sheet | PET,PP,PS,HIPS,PVC,PLA..... | |
| Power supply | AC 380V,50Hz three-phase,four-wire | |
| Heating Area | 135kw | 147kw |
| Rated power | 165kw | 182kw |
| Number of workstations | Single station | Single station |
| Mold Type | Intra-mold cutting | Intra-mold cutting |
| Weight | 8T | 9T |
| Dimension | L*W*H(4200*2260*2500)mm | L*W*H(5200*2300*2500)mm |

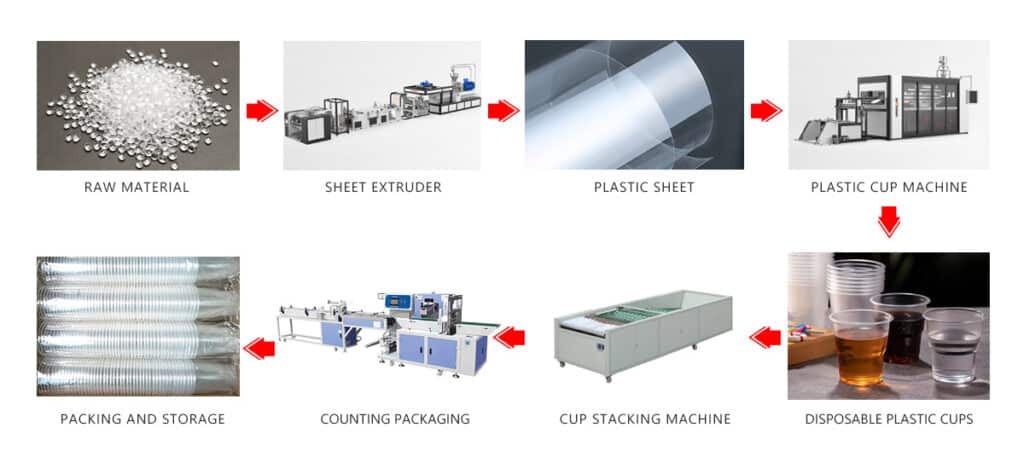

Production Plan
To transform plastic raw materials into an exquisite plastic cup, every step outlined below is crucial; if you intend to launch this project, you must understand the complete production process—from raw material pellets to the finished cup.
The customer also inquired about these machines

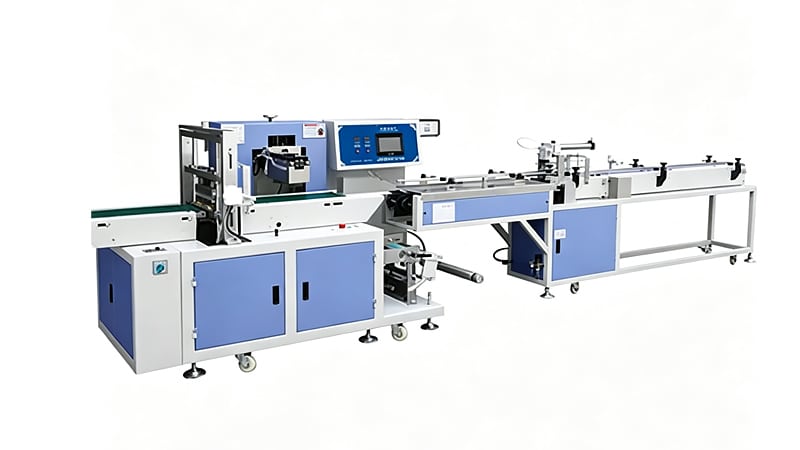

Plastic-Cup-Counting-and-Packaging-Machine
Plastic-cup-stacking-robotic-arm
Plastic-cup-logo-printing-machine

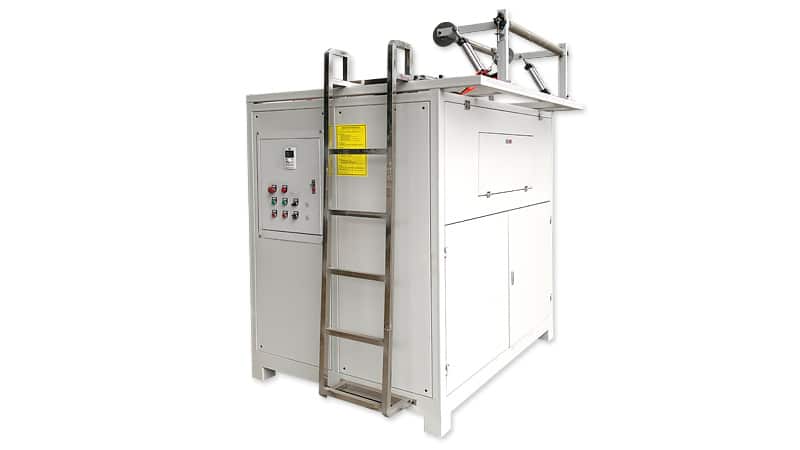

Plastic-Cup-Scrap-Grinding-and-Recycling-Machine
